Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection

Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection

    • Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection
    • Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection
  • Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Model Number: BR48-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: 40-80 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: BR48-20 Type: DC SPD
    Un: DC 48V Uc: DC 65V
    In (8/20μs): 10kA Tu: -40....+80°C
    Mounting: 35mm Din Rail Imax (8/20μs): 20kA
    High Light:

    dc surge suppressor

    ,

    dc surge protector solar



    Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection



    Product characteristics:



    • Imax: 20 kA.
    • EU Category: Type 2.
    • Flame-retardant shell.
    • Protective Elements: High Energy MOV.
    • Design according to IEC and GB standard.
    • Mode of Protection: (DC+) – PE, (DC-) – PE, (DC+) – (DC-).
    • Adopt temperature control circuit technology which has built-in over current breakers and thermal
      fuse circuit breakers.
    • Provide high capacity industrial surge protection for 48V DC applications, with low let-through
      voltages for DC power and signal circuits.



    Product detail:



    2 Mod BR48-20
    SPD classification according to IEC61643-1 Class II
    Operating Voltage                                                       Un DC 48V
    Max. Continuous Operating Voltage                           Uc DC 65V
    Nominal discharge current (8/20us)                             In 10kA
    Max. discharge current (8/20us)                              Imax 20kA
    Voltage protection level                                               Up <380V
    Response time                                                             tA ≤25ns
    Operating temperature range                                      Tu -40℃-80℃
    Operating state / fault indication green / red
    Nominal Load Current 60A
    Leakage current ≤20µA
    Protection Mode +/PE,-/PE
    Cross-section area (Min.) 4mm2
    Cross-section area (Max.) 35mm2
    For mounting on 35mm Din rail
    Enclosure material                   Thermal plastic UL94-V0
    Degree of protection IP20

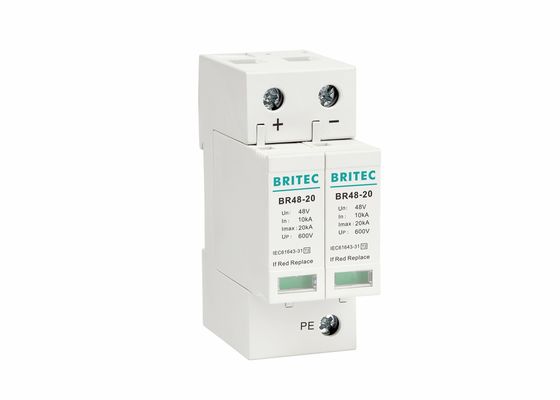

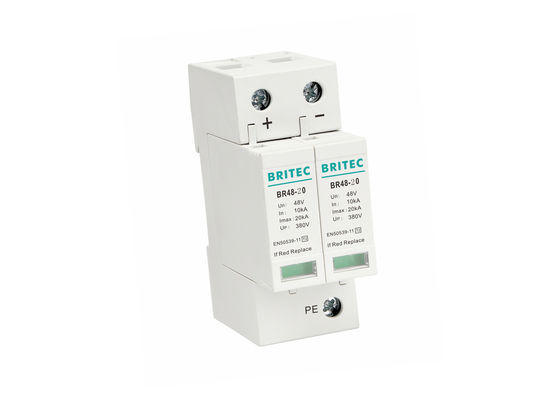

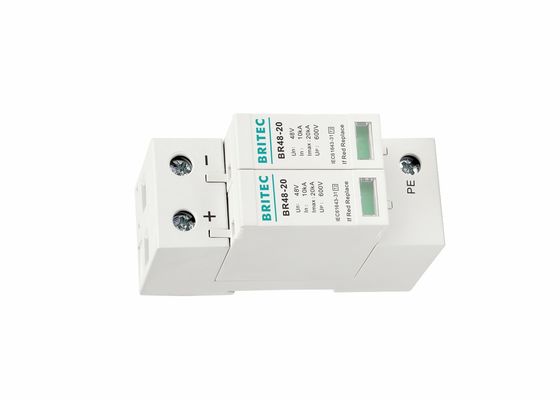

    Product view:

    Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection 0

    Application:

    • For use in photovoltaic systems.
    • For installation in the DC circuits of solar photovoltaic systems, string box, inverter.
    • Use for lightning protection zone: LPZ3 (D class) power lines of the lightning surge protection.
    • Effectively used in telecommunications surge protection, solar energy, industrial, medical and other
      commercial applications.
    • Applied to provide fine over voltage protection of electronic equipment whose power is supplied by
      direct-current power supply.
    • Widely used in the lightning protection of telecommunications room DC bus, the DC bus bar
      microwave communications room, closing the substation bus, control bus.

    Advantage:

    • Compact design.
    • Pluggable module.
    • Very low Up protection level.
    • Easy installation and specific compatibility.
    • Use high temperature resistant plastic with excellent tightness, and easy to install wiring.



    Certifications:



    Based on our strategy to provide the highest quality SPD products, we perform strict quality inspections

    throughout our entire manufactruing process. Accordingly, we have passed ISO9001 quality system

    certification.



    Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection 1



    Company profile:



    Pluggable Type 2 Lightning Arrester Modular 48V DC SPD Over Voltage Protection 2



    FAQ:


    Q1. Are you a factory or trading company?

      A. We are a factory.



    Q2. Where is your factory located? How can I visit there?
      A. Our factory is located in Yueqing City, Zhejiang Province, China. You can fly to Longwan airport

          directly. All our clients, from home or abroad, are warmly welcome to visit us!



    Q3. What's the payment term?
      A. We accept TT, 30% deposit and 70% before shipment, Paypal, L/C is ok!



    Q4. How's the delivery time?
      A. Usually it will take about 15~30 days for production.



    Q5. Tell me the standard of package?
      A. Usually, it use carton.
