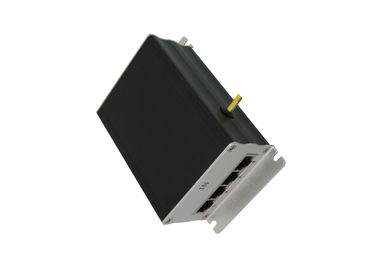

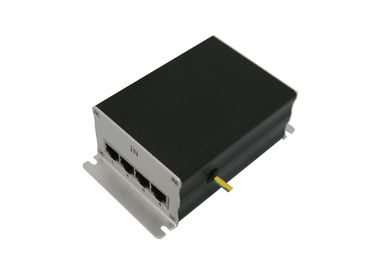

4- Port RJ45 5KA Ethernet Surge Protection Devices Feature:
• Aluminum structure.
• Nominal voltage: 5 V.
• Nominal current: 0.5A.
• Protection for the RJ45 port.
• CAT5e and CAT5 compatible.
• Number of RJ45 ports: 4 ports.
• Nominal discharge current: 5kA.
• Voltage protection level: ≤30 V.
• RJ45 connectors for input/output.
4- Port RJ45 5KA Ethernet Surge Protection Devices Product characteristics:
| |
BRRJ45-4 |
| Test standards |
IEC61643-21 |
| Nominal voltage Un |
5V |
| Max.continuous operating d.c.voltage Uc |
6V |
| Max.continuous operating a.c.voltage Uc |
4V |
| Nominal current IL |
0.5A |
| C2 Nominal discharge current (8/20us) per line In |
5kA |
| Voltage protection level [line-line] Up |
≤30V |
| Voltage protection level [line-PG] Up |
≤500V |
| Response time [line-line] tA |
≤1ns |
| Response time [line-PG] tA |
≤100ns |
| Operating temperature range Tu |
-40℃…+80℃ |
| Connection (input/output) |
RJ45 socket |
| Protect The Port Quantity |
4 ports |
| Bandwidth |
10/100/1000M |
| Insertion Loss |
≤0.2dB |
| Enclosure material |
aluminium alloy |
| Degree of protection |
IP20 |
4- Port RJ45 5KA Ethernet Surge Protection Devices Application:
• Protects from voltage spikes and electrical surges, induced by lightning, power line parasites, and other factors.
• Used for POE enabled device not to be spoiled by lightning over- voltage, induced over-voltage and static discharge.
4- Port RJ45 5KA Ethernet Surge Protection Devices Advantage:
• Low capacitance.
• Fast response time.
• Multi-Strike Capability.
• Large discharge capability.
• High-speed performance.
4- Port RJ45 5KA Ethernet Surge Protection Devices Installation:
• All wires must be solid and connected by electric.
• Installed between signal channel and equipment protected, the output interface is connected with equipment protected.
