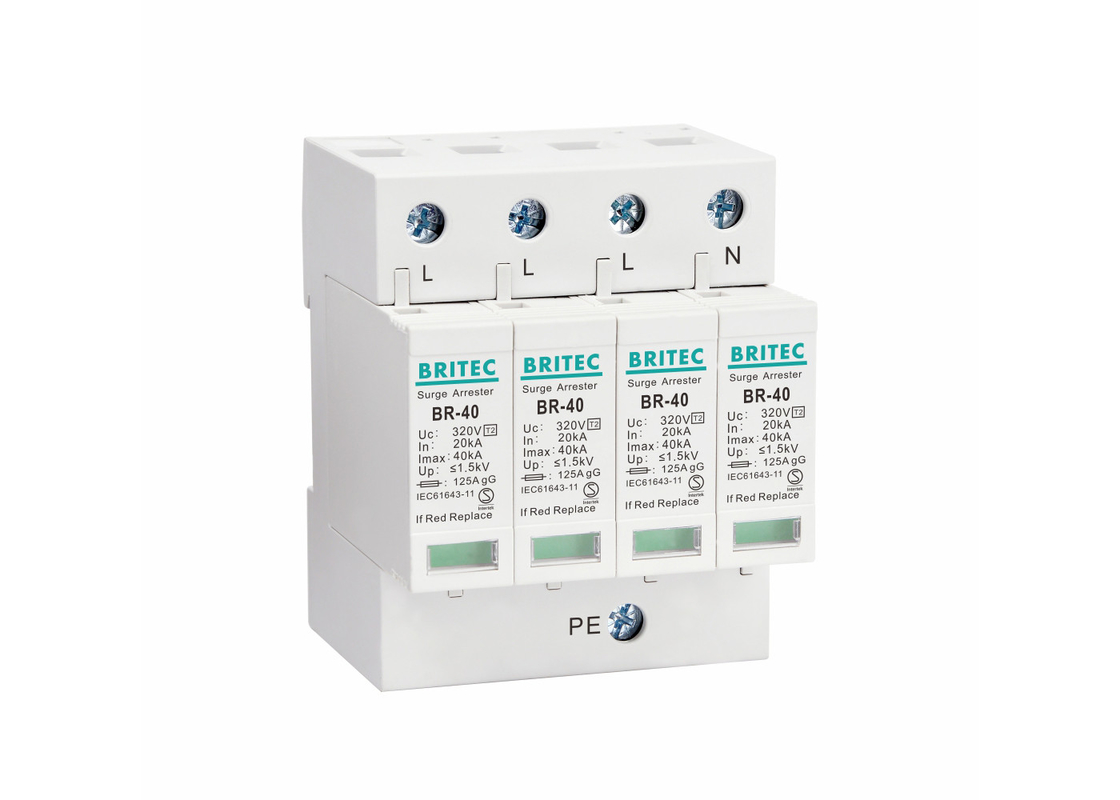

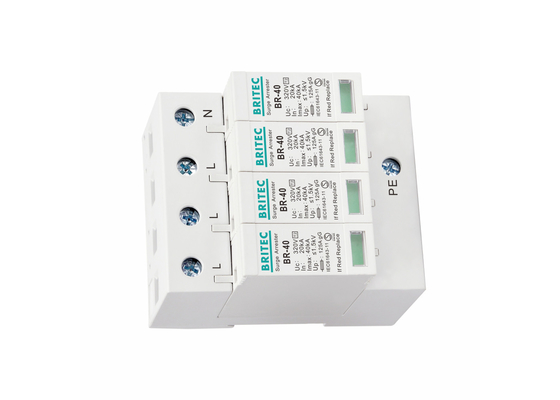

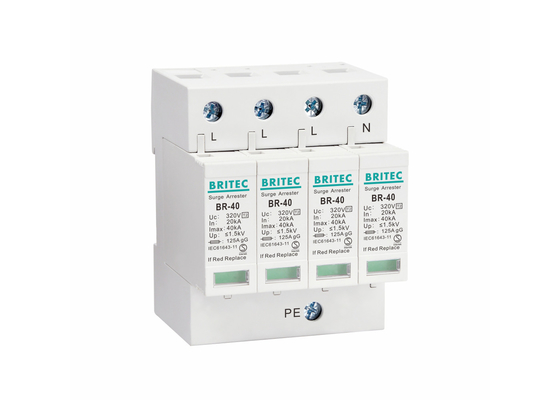

SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection

SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection

  • SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection
  • SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection
SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE/TUV/CB
Model Number: BR-40 320 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protector SPD Type: Type 2 T2
Pole Number: 4P Uc: 320v
In: 20kA Imax: 40kA
Enclosure: Thermoplastic UL94-V0 Certificate: TUV/CE/ROHS/ISO9001
Tu: -40℃-80℃ Application: Surge Protective Device Is Suitable For Three-phase TN-S System
Highlight:

40KA type 2 surge protector

,

40KA type 2 surge protection device

,

4P type 2 surge protector

40KA SPD Class 2 Type 2 Surge Protector 4P 320V T2 Surge Protective Device



T2 Surge Protective Device Features:

Type: BR-40.
Rated Frequency: AC50/60Hz.
Standard: IEC61643-11.
Main material: Thermoplastic.
The product is with an internal separating device.
When the surge protective device is overcurrent or overvoltage and the puncture is no serviceable, the separating device will automatically separate from the protector from the electrical network. And simultaneously the position display window will turn red from green.

T2 Surge Protective Device Technology characteristic:



Specification BR-40 320 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage                 Uc 320V
Max discharge current (8/20µs)                         Imax 40kA
Nominal discharge current (8/20µs)                      In 20kA
Voltage protection level                                        Up ≤1.5kV
Max. backup fuse 125A gG
Response time                                                       tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                Tu -40℃—80℃
Operating state/fault indication green/red
Enclosure material Thermoplastic UL94-V0



Dimension:



SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection 0



T2 Surge Protective Device​ Application:



BR-40 series surge protective devices are used for lightning and overvoltage protection in AC50/60Hz, 230/400V.



Applicable range:

When the power network is under high-impulse voltage caused by lightning or other reasons, is will damage the electrical equipment. Especially, with the spread of the using of the computer and microelectronic device, the overload protection of the low voltage power network is highly concerned. BR-40 series surge protector devices (SPD) are the best products to protect the low voltage power network from lightning or surge over voltage.


Production process:



SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection 1



About us:



Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing city, Zhejiang province, is a comprehensive international manufacturer & trading company for SPD products. Most of our products are sold to Sweden, Denmark, Germany, United Kingdom, French, Italy, Spain, France, Hungary, Slovakia, Croatia, Canada, Mexico, Brazil, Argentina, Australia, New Zealand, South Korea, Hongkong, Japan, Singapore, Malaysia, Thailand, Indonesia, Israel, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.



SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection 2



Laboratory:



SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection 3



Certification:



SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection 4



Shipping:



SPD T2 320V 4P 40KA Type 2 Surge Protector Lightning Protection 5



FAQ:



Q: About Sample?
A: Sample delivery time: 7-10 days; sample transportation time: 5-7 days. Shipping time varies depending on the delivery.



Q: What types of packaging do you normally use for this product?
A: Usually packed in carton. Custom packaging is also available.



Q: How long does it take to manufacture once an order has been placed?
A: Order production time depends on the order quantity.



Q: Which order payment methods are supported?
A: Our payment methods are flexible and you can use T/T, Credit card, and PayPal payments.



Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9001 standard. We have 21 years experience of QC team. We have strictly quality control system in our production process. We have 100% inspection for each finished product before package.
