Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-25GR 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Device Type: Ac Surge Protector
Material: Plastic Pole Number: 3P
In: 25kA Degree Of Protection: IP20
Certificate: TUV/CE/ROHS/ISO9001 Operating Temperature Range: -40℃-80℃
Application: Surge Protective Device Is Suitable For Three-phase TN-C System Order Code: B8125
High Light:

industrial surge protection devices

,

type 1 surge protector

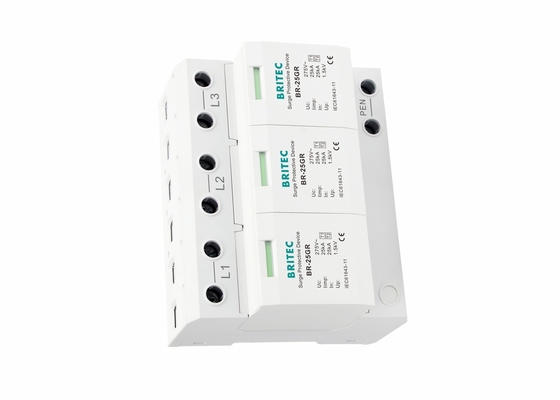

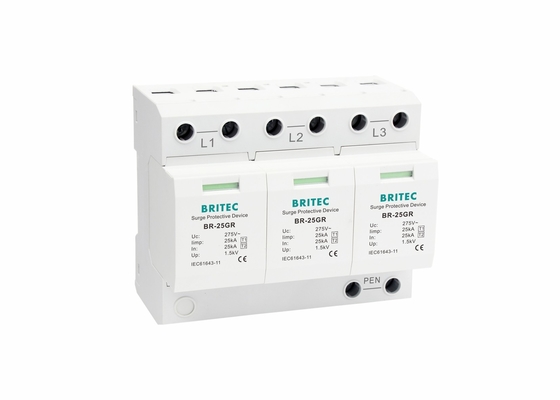

25ka three phase Type 1 Surge Protection Device TUV approved BR-25GR 3P



Sensitive Type 1 Surge Protection Device Features:


• Protecting low-voltage consumers' installations against indirect lightning discharges

High performance varistor with thermal disconnection tripping device

Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.

Protection class: Type 1,Class I

Pole number:3P

• Surge areeare used to guard sensitive equipments from voltage spike.

• The modular devices of the BR-25GR product line are coordinated lightning current arresters with a patent design.

• Energy coordination with Type 2 surge arresters of the BR-25GR family is ensured without additional cable lengths or decoupling coils. This is one of the most important features of the our product line.
• The Type 1 arresters combine high performance and user-friendliness in a single device. Their electrical parameters were rated for the most stringent requirements within lightning and surge protection systems.

• The modular BR-25GR arresters are safe and user-friendly. The protection modules can be easily replaced by unscrew the module from the busbar.

• Operating state of the device can be seen on the led light. When the product is normal, the green light is on, and when the product is fault there will be no green light. The remote signal can be used as a make contact.



Sensitive Type 1 Surge Protection Device Technology characteristic:



Specification BR-25GR 3P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage              Uc 385V
Lightning impulse current (10/350µs)              limp 25kA
Norminal discharge current (8/20µs)                  In 25kA
Voltage protection level                                     Up ≤2.0kV
Follow current extinguishing capability a.c.        lifi 5kA rms
Max. backup fuse 315A gG
Response time                                                    tA ≤100ns
For mounting on                                35mm Din rail
Degree of protection IP20
Operating temperature range                             Tu    -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enlcosure material Thermal plastic UL94-V0



Dimension:



Sensitive Type 1 Surge Protection Device 315A gG Fuse CE / ISO Certification 0



Sensitive Type 1 Surge Protection Device Application:



BR-25GR is ideally suited for use in the main distribution board of the low-voltage consumer’s installation of a building. Equipped with the latest multi spark gap technology, the protection and availability of electrical installations is a top priority of BR-25GR SPDs. Due to the unique follow current limitation and extinction, fuses are not tripped by follow currents even in case of low-value fuses in the installation.
