RJ45 Surge Protector with Gas Discharge Tube for Ethernet Data Networks Featuring IP20 Protection and 30 Mbps Bandwidth

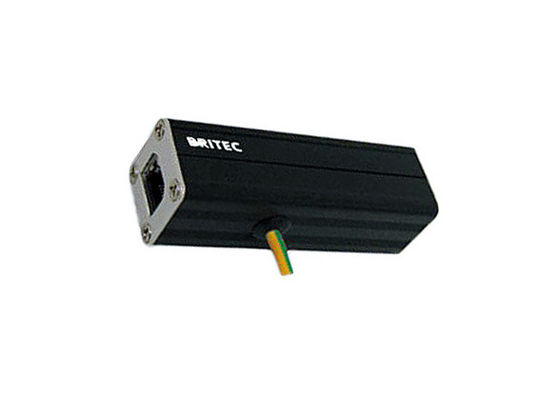

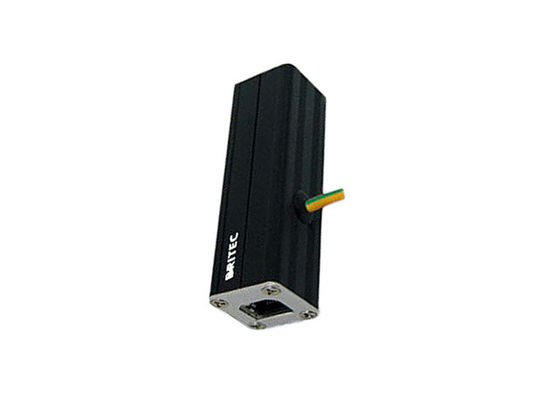

Large Image : RJ45 Surge Protector with Gas Discharge Tube for Ethernet Data Networks Featuring IP20 Protection and 30 Mbps Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BRRJ45L-4L
Document:	BR-RJ45 RJ11.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	200 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	T/T
Supply Ability:	100000 Piece/Pieces per Month

Contact Now

RJ45 Surge Protector with Gas Discharge Tube for Ethernet Data Networks Featuring IP20 Protection and 30 Mbps Bandwidth

Description

Application:	RJ45 Data Ethernet Surge Protector	Operation Voltage:	Low Voltage
Material:	Black Aluminium Enclosure	Compliance:	IEC 61643-21; En 61643-21; GB/T 18802.21
Warranty:	2 Years	Degree Of Protection:	IP 20
Installation:	Tandem Arrester	Size:	Small
Shape:	Monobloc Design	Max. Continuous D.C. Voltage [UC:	1
Highlight:	RJ45 Adapter Data Surge Protector , RJ45 Adapter data arrester , Gas Discharge tube arrester

LAN RJ45 Adapter Surge Protection Device with Gas Discharge Tube

Product Overview

This RJ45 surge protective device provides comprehensive lightning and surge protection for all four pairs of Ethernet lines. Designed with gas discharge tube technology, it ensures reliable protection for communication and data networks.

RJ45 interface with protection for four pairs of lines
Gas discharge tube lightning suppression technology
Compliant with IEC 61643-21 and GB/18801.21 standards
Maximum continuous operating voltage: 6V DC
Aluminum alloy casing for durability
Ideal for retrofitting existing systems
Standard RJ45 interface connection

Technical Specifications

Parameter	Value
Model	BRRJ45L-4L
Test Standards	IEC61643-21
Nominal Voltage (Un)	5V
Max Continuous Operating DC Voltage (Uc)	6V
Max Continuous Operating AC Voltage (Uc)	4V
Nominal Current (IL)	0.5A
Lightning Impulse Current (10/350μs) per line	0.5kA
Nominal Discharge Current (8/20μs) per line	1.5kA
Voltage Protection Level [line-line] @200A	≤30V
Voltage Protection Level [line-PG] @1.5kA	≤500V
Response Time [line-line]	≤1ns
Response Time [line-PG]	≤100ns
Operating Temperature Range	-40℃ to +80℃
Connection	RJ45 socket
Bandwidth	30 Mbps
Insertion Loss	≤0.3dB
Enclosure Material	Aluminum alloy
Degree of Protection	IP20

Product Dimensions

Operating Environment

Temperature: -40℃ to 80℃
Relative humidity: ≤95%
Atmospheric pressure: 70kPa to 106kPa

Installation Instructions

Before installation, verify that grounding resistance meets specification requirements
Install protector at the front-end of protected equipment
Ensure reliable connection to protected equipment
Connect grounding lines to protection grounding busbar as soon as possible

Manufacturer Information

Wenzhou Britec Electric Co., Ltd. is a specialized manufacturer and exporter of surge protection devices, including AC surge protectors, DC surge protection, LED lighting surge arresters, and data surge protective devices. Located in Yueqing, Zhejiang, China, we offer convenient transportation access, excellent quality, competitive pricing, and superior service to customers worldwide. Our company culture is built on sincerity, trustworthiness, punctuality, and high-quality standards.

Certifications

Payment & Shipping

Frequently Asked Questions

Q1: Are you a trade company or a manufacturer?

A: We are the manufacturer and we are specialized in low voltage surge protection field.

Q2: What is your delivery date?

A: Sample Order: 10 days after receipt of the full payment; Mass Order: 30 days after receipt of the full payment; OEM Order: 30 days after receipt of the deposit.

Q3: What is your payment terms?

A: PayPal, TT, L/C, etc.

Q4: Can you send samples?

A: Yes, every time you need, please contact us directly.
