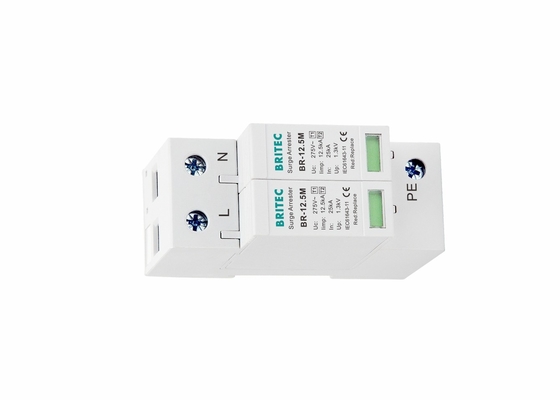

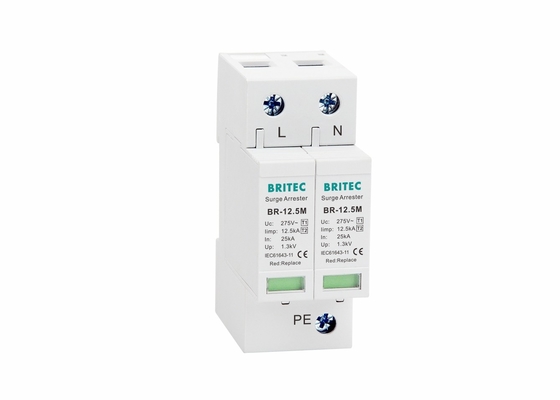

2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11

2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11
2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11 2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11

Large Image :  2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-12.5M-275 2P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now

2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11

Description
Item Name:: Surge Arrester Kinds: AC Protection Device
Standard:: IEC 61643-11 And EN 61643-11 Model Number:: BR-12.5M
Pole Number:: 2P Uc: 275V
Iimp: 12.5kA Imax: 60kA
Material: Thermoplastic UL94-V0 Tu: -40℃-80℃
Keyword: Lightning Protection
Highlight:

BR-12.5M Surge Protection Device

,

BR-12.5M surge protector suppressor

,

12.5kA Surge Protection Device



2P 275V 12.5kA Surge Arrester AC Protection Device BR-12.5M IEC 61643-11



AC Protection Device Features:

• Type 1+2 surge protector SPD.
• High discharge capacity in a certain small size.
• Fast response(≤25ns); low protection level (≤1.3kV)
• High follow current extinction and limitation due to no follow current technology.
• Reliable safety due to double integrated disconnections with double protections.
• Failure indication window, remote alarm terminal optional.



AC Protection Device Product Details:



  BR-12.5M-275 2P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                  Uc 275V
Lightning impluse current (10/350us)                   Iimp 12.5kA
Nominal discharge current (8/20us)                         In 25kA
Max. discharge current (8/20us)                          Imax 60kA
Voltage protection level                                           Up ≤1.3kV
Voltage protection level 5kA                                    Up ≤1.0kV
Max. backup fuse 160A gG
Response time                                                         tA ≤25ns
Operating temperature range                                  Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                     Thermoplastic UL94-V0
Degree of protection IP20


Technology characteristic:


2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11 0

AC Protection Device Application:

• It is applied in low voltage AC power distribution system, and connected between the AC power supply and the equipment in parallel. It can prevent the equipment from the impulse surge and the transient overvoltage caused by the outside environment (such as lightning, EMI, etc.) or by the system (such as switching effects of the system, startup or shutoff of the inductance and capacitance load, etc.).

Standards Complied:

IEC 61643-11:2011 Low-voltage surge protective device-part 11: surge protective devices connected to low-voltage power systems-Requirements and test.
EN 61643-11:2012 Low-voltage surge protective device-part 11: surge protective devices connected to low-voltage power systems-Requirements and test.


Our Services:


Provide goods in accord with customers.

Provide more safe,cost -effective and long life lightning arrester products.

Provide best pre-sale and after-sale service.


Company profile:

Britec Electric Wenzhou Co., Ltd is an enterprise for surge arrester. Over more than 21 years, we become one of the most professional SPD manufactures. Specializing in making good quality AC surge protection, DC surge protector, data surge protective device, and LED lightning arrester from R&D, production and marketing. Our product line have passed management system of ISO9001.

2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11 1

Certifications:

2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11 2

Production process:

2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11 3


Packaging & Shipping:



Packging: packed in carton.

Shipment: Ocean or Air transportation, International express.

Payment Terms: T/T, paypal etc.


2P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11 42P 275V 12.5kA Surge Protection Device Surge Arrester IEC61643-11 5

FAQ:


Q1: Are you a factory or trading company?

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.



Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.



Q3: When can I get the price?

A3: Usually we quote within 24 hours after we get your inquiry.



Q4: How could I get a sample?

A4: We will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.



Q5: What is the price of shipping?

A5: Depending upon the port of delivery, prices varies.
