Home ProductsT1+T2 Surge Arrester B+C

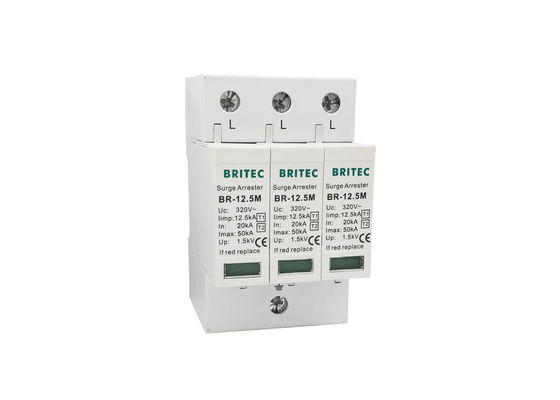

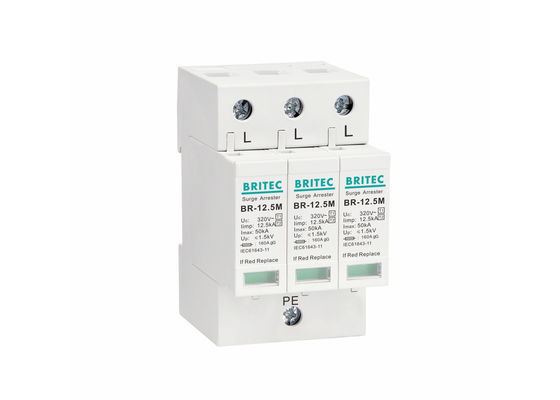

Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device

Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device

  • Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device
  • Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device
Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR320-12.5M 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 40-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Class: Class I+II
Type: Type 1+2 Material: Thermal Plastic UL94-V0
Pole Number: 3P Tu: -40℃-80℃
Uc: 320V AC Iimp: 12.5kA
Brand: BRITEC Manufacturer Product Name: Surge Protective Device
High Light:

12.5kA spd surge protection device

,

12.5kA lightning surge protector

,

320V spd surge protection device


320V 12.5kA Home Surge Protection Electrical Surge Protective Device SPD



Electrical Surge Protective Device SPD Feature:

It’s designed according to GB18802.1 IEC61643-1.
Britec hold patent for the design.
It adopts 35mm standard rail.
Time of response 25ns.
The plug-in module / base design facilitate replacement of a failed module without the need to remove system wiring etc.
There is a failure release mounted on the module of surge protective device.
It consists of a high performance varistor with thermal disconnection tripping device.
When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal.

Electrical Surge Protective Device SPD Product Details:

  BR-12.5M-320 3P
SPD classification according to EN 61643-11 Type 1 + Type 2
Protection class Class I + Class II
Pole number 3P
Rated Voltage(max. continous voltage)                    Uc 320V
Lightning impluse current (10/350us)                      Iimp 12.5kA
Nominal discharge current (8/20us)                            In 20kA
Max. discharge current (8/20us)                             Imax 50kA
Voltage protection level                                              Up ≤1.5kV
Max.Back up fuse 160A
Response time                                                            tA ≤25ns
Power supply system 3 phases TN-C system
Technology MOV
Format Plug-in modular
Operating Environment                                              Tu -40 degree to + 80 degree
Operating state / fault indication green / red
Cross-section area  4mm2~35mm² solid
Installation 35mm Din rail
Protection degree IP20
Material of outer covering                    Thermal plastic UL94-V0
OEM Yes
Remote contacts Available
Dimension 3mods
Width of one pole 18mm


Technology characteristic:


Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device 0

Electrical Surge Protective Device SPD Application:


BR-12.5M 3P, C series surge protective device (SPD) is suitable for TN-C power supply system of AC 50/60Hz, 320V.

It's suitable for B + C grade surge protection.
For protecting low-voltage consumer's installations against indirect lightning discharges.


Electrical Surge Protective Device SPD Specifications:


1. Iimp: 12.5kA; Imax.50kA In.20kA.
2. 3P.
3. Uc.150, 275, 320V AC.
4. CE certificate.

Packaging & Shipping:


Delivery method: we can offer the door to door services by air/ by sea, just depend on your actual request. Such as DHL, UPS, TNT, FedEx; and the sea transportations.

Delivery time: 15-30 working days after your payment.

Package: Carton.

Payment: T/T, or Contact us.


Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device 1Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device 2


Our Services:

1. Warranty is 2years, from the shipping date. The shipping cost will be on clients' side.
2. If the product is defective when received, please notify us within 3-5 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
4. Track the delivery until you get it; Replace the defect product in your next order.


Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device 3


Company Information:

Wenzhou Britec Electric Co.,Ltd. located in China, is specialized in research, development, production and sales of SPDs which include AC surge protector, DC surge protection device, data surge protective device, Led lightning arrester etc.


Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device 4

Certification:

Electrical IEC61643-1 320V 12.5kA Spd Surge Protection Device 5

FAQ:


Q1. Why choose us?
A1. Our Products have Various style and high quality. We accept sample order, we have reliable quality assured with low factory direct price. We also offer service of printing customer’s logo.


Q2. Can I choose color?
A2. Yes, different color is available.

Q3. How can I see your PRIC LIST?
A3. Please contact us by E-mail, we will send you our price.

Q4. Can I get a discount?
A4. Yes. For big order and frequent customers.

Q5. How long does a sample order takes?
A5. Normally within 7-15 days.

Q6. About Payment
A6. Accept T/T, Paypal etc.

Q7. About Shipment
A7. Samples can be shipped out within 7-15 days. Shipped by TNT/EMS/UPS/DHL/FEDEX or Air/Sea shipment which depends on your choice.

Q8. About Warranty Policy
A8. All products are 100% new and original. Every product has passed QC inspection before shipment. We offer two years warranty for all products.


Notice:

When you order our goods, please write the model and quantity carefully.
