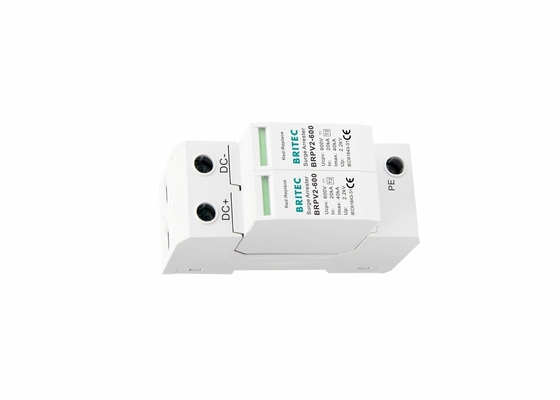

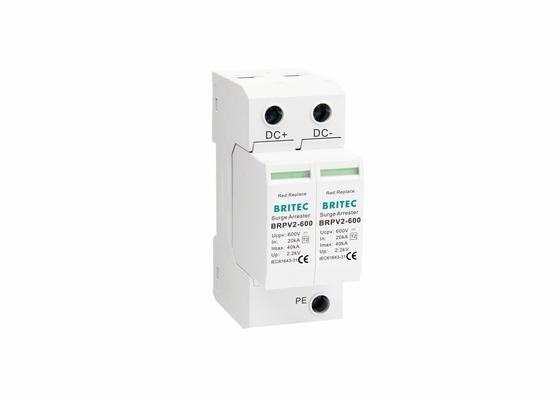

Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor

Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor

  • Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor
  • Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor
Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV2-600
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: EN61643-11 / EN50539-11 Classification: Class II
Ucpv: 600V In: 20kA(8/20us)
Imax: 40kA(8/20us) Up: ≤2.6kV
TA: ≤25ns Tu: -40℃...+80℃
Mounting On: 35mm Din Rail Application: Solar
High Light:

SPD dc lightning arrestor

,

600V dc lightning arrestor

,

600V dc surge arrester



PV SPD 600V DC Lightning Arrestor Din Mount Plastic Double Pole 20-40 kA



PV SPD 600V DC Lightning Arrestor Description:

BRPV2 surge protector series is suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC500V, 600V, 800V, 1000V.
BRPV2-600 is type 2 surge protector is designed to protect against lightning surge voltages in photovoltaic power supply network
Installation position in the dc power supply system, always of lightning current and lightning current directly or indirectly other instantaneous overvoltage protection.


600VDC Solar Surge Protection for PV Installations Product Details:


   BRPV2 600
SPD classification according to EN61643-11 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating dc voltage                            Ucpv 600V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level                                                      Up ≤2.6kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Degree of protection IP20
Order Code B8013
Order code(With remote signal) B8015


Technology characteristic:

Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor 0



PV SPD 600V DC Lightning Arrestor Features:



• This surge protection device, protect against lightning surge voltages in solar system.
• The use of Class C Surge Protection Devices are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
• These units must be installed in parallel on the DC network and provide common and different modes of protection.
• A remote signal feature is also available
• These are high energy MOVs equipped with specific thermal disconnectors and related failure indicators.



Our Services:



• Prompt response: Any inquiries will be replied within 24 hours;
• Professional manufacturer;
• OEM/ODM available;
• After-sale Service: 1). All products will be strictly Quality Checked in house before packing; 2). All products will be well packed before shipping; 3). All products have warranty.
• Standard packaging, and you can also tell us your own requirements on packaging;
• Faster delivery;



Why need pv surge arrester?



Most of the solar modules are very regularly exposed to lightnings and overvoltages, where lighting occurrences are frequent, unprotected PV systems can suffer repeated and significant damage to key components. And these systems represent a significant investment cost, system downtime and the loss of revenue. PV modules, DC cabling, inverters, AC cabling, as well as monitoring systems must all be protecting as part of a in all-inclusive effort to mitigate the damaging effects of lightning and surges. The use of adapted surge protections is then highly recommended.


Certifications:

Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor 1



Company profile:



Wenzhou Britec Electric Co., Ltd is ISO and CE certificated manufacturer, we are suppliers of SPDs. We are specialized in surge protection device. We can offer lightning arrester with specifications and uses according to clients' requirements. Our company has carried out a completed management system of production, scientific research and sales service. Our products are widely used in various electric power stations, electric power plants, factories and electric power systems. Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price, on-time delivery and our best service.



Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor 2

Shipping:

Class II PV SPD 600V Plastic Double Pole DC Lightning Arrestor 3


FAQ:



Q: Are you Trading Company or Manufacturing Factory?
A: we are a professional manufacture with 17 years production experience and 15 years export experience.



Q: I am interested in your products, could I get sample?
A: We are glad to offer samples.



Q: How about the Delivery time?
A: It is aboout 15-30 days.



Q: How can you guarantee the product quality?
A: We have the quality control system, and it's been followed strictly. All product will be inspected before packing for double checking, no matter where our product deliver to, we will be responsible for its quality, customer's satisfaction is very important for us, it matters whether we have next order.


Q: I'd like to know your Payment terms.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. About other payment terms, let's make a specific negotiation according to our order situation.
