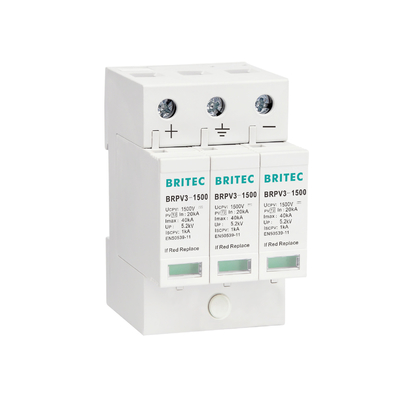

BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector

BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector

  • BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector
  • BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector
  • BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector
  • BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector
BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/UL/CB/CE/ROHS/ISO9001
Model Number: BRPV3-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-20 days after payment
Supply Ability: 10000 per week
Contact Now
Detailed Product Description
Item: Solar Arrester Packaging Details: Standard Export Box Package
Usage: Solar Power Packing Unit: 1 Pc
Warranty: 5 Years Color: White
Version: Plug-in
High Light:

DC1500V 40ka surge protector

,

3P 40ka surge protector

,

Type 2 PV solar arrester

1500V 40kA 3P dc solar PV surge protection device SPD solar arrester

solar arrester Feature:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module




solar arrester Product Details:
BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 0

   BRPV3 1500
SPD classification according to EN61643-11 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating dc voltage                            Ucpv 1500V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                         Up ≤5.2kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Degree of protection IP20


solar arrester Dimension:

BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 1

SPD Type 2 for 1500 V DC photovoltaic systems
• Replaceable varistor modules with colour code
• Visual and remote signalling of varistor status
• Surge arrester for protection of DC side 1500 V systems in photovoltaic applications.



solar arrester Advantage:

• Optical status indicator via LED.
• Space-saving enclosure with a width of only four modules for up to 1500 V d.c.
• Operating state / fault indication by green / red indicator flag in the inspection window.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Why need surge arrester?


Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.


Installation instruction:


• Mount the SPD on 35 mm DIN rail.
• The SPD is placed in parallel between the energized conductors and ground.
• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.


Company profile:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 2

BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 3

Our certificate:
We got CB, CE, TUV,RoHS Certificate:

BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 4

Payment:

   Payment Term    T/T       EXW          30% T/T in advance, paid the balance before shipment.
FOB
CIF    30% T/T in advance, paid the balance against copy of B/L.
L/C    L/C amount above 50,000 usd, we can accept L/C at sight.
   Paypal       Amount lower than 5000usd.
Delivery Time    15-30 days after receiving deposit.


BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 5

Factory:
BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 6

BRPV3-1500 DC1500V 3P PV Solar Arrester 40ka Surge Protector 7

FAQ:

Q1: How long is your products warranty?
  A: The warranty period of our products is 5 Years.

Q2: How about inspection?
  A: We have the whole inspection system from raw material to end products.

Q3: What is the service offered by company?
  A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
