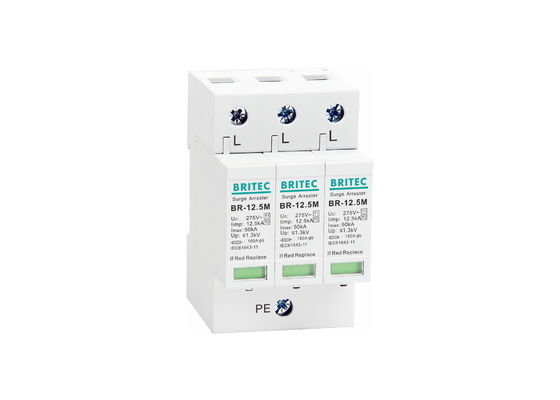

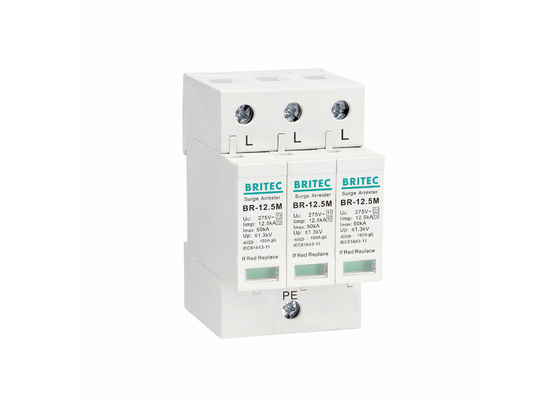

BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C

BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C

  • BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C
  • BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C
BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR275-12.5M 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 40-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Lightning Protector Class: Class I+II
Type: Type 1+2 Material: Thermal Plastic UL94-V0
Pole Number: 3P Tu: -40℃-80℃
Uc: 275V AC Iimp: 12.5kA
Brand: BRITEC Manufacturer Product Name: Surge Protection Device
High Light:

275V T1+T2 Surge Arrester B+C

,

275V surge protector circuit breaker

,

BR-12.5M T1+T2 Surge Arrester B+C



BRITEC Manufacturer 12.5kA Class I + II Surge Protection Device AC 3 Pole SPD 3p



Class I + II Surge Protection Device Feature:

• It is designed according to IEC61643-1, GB18802.1.
Maximum current of endure the lightning stroke 50KA.
Time of response<25ns.
It adopts 35mm standard rail.
Pluggable module, easy for installation and maintenance.
High discharge capacity, quick response.
There is a failure release mounted in the module of surge protection device.
When the SPD fails in breakdown for over-hart and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal.

Class I + II Surge Protection Device Product Details:

  BR-12.5M-275 3P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Rated Voltage(max. continous voltage)                    Uc 275V
Lightning impluse current (10/350us)                      Iimp 12.5kA
Nominal discharge current (8/20us)                            In 20kA
Max. discharge current (8/20us)                             Imax 50kA
Voltage protection level                                              Up ≤1.3kV
Max.Back up fuse 160A
Response time                                                            tA ≤25ns
Power supply system 3 phases TN-C system
Technology MOV
Format Plug-in modular
Operating Environment                                              Tu -40 degree to + 80 degree
Operating state / fault indication green / red
Cross-section area  4mm2~35mm² solid
Installation 35mm Din rail
Protection degree IP20
Material of outer covering                    Thermal plastic UL94-V0
OEM Yes
Remote Signalling Optional
Dimension 3mods


Technology characteristic:


BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C 0

Class I + II Surge Protection Device Application:

BR-12.5M 3P AC SPD is suitably used in the TN-C power supply system of AC 50/60Hz.
Applied in modular SPD Class I + II (Class B + C).
Protecting low voltage equipment from surge damages.


Class I + II Surge Protection Device Product introduction:



In order to meet with user demand, we developed new generation BR-12.5M series protector with built-in circuit breaking device, to limit surge current, overvoltage, over-current occurred in the power system duo to some reasons, working in the system of AC 50Hz, rated voltage 320V and below to prevent surge voltage from damaging electric equipment.


Shipping:

BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C 1

Factory picture:

BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C 2

About us:

BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C 3

Certification:

BRITEC AC 12.5kA BR-12.5M 275V T1+T2 Surge Arrester B+C 4

FAQ:

Q1: What's your warranty?
A1: The warranty is 2 years.

Q2: How about inspection?
A2: Our Test standard: IEC 61643-1 / EN 61643-11/ UL1449 ed.4/GB 18802.1, and the Vibration and Shock according standard : DIN EN 60068-2-6 and DIN EN 60068-2-27, as well as the Degree of protection according to IEC EN60529: IP 20.


Q3: What's the standard of package?

A3: Inner box and out carton are made as per international standard and we can make special design according to customer's need.


Q4: Could you do OEM for us?
A4: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.

Q5: What is the payment terms?
A5: T.T, PayPal and L/C is acceptable.
