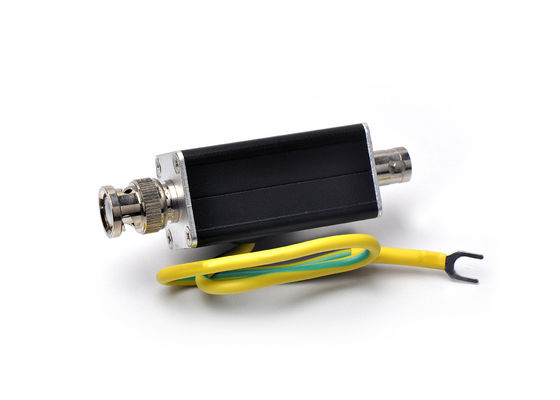

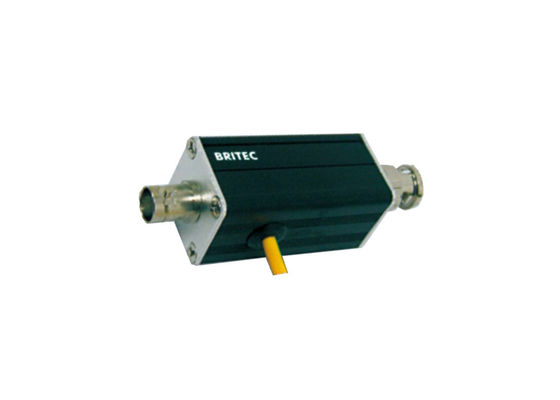

BNC Coaxial Lightning Protection for HD Security Cameras Female to Male Connector

BNC Coaxial Lightning Protection for HD Security Cameras Female to Male Connector

  • BNC Coaxial Lightning Protection for HD Security Cameras Female to Male Connector
  • BNC Coaxial Lightning Protection for HD Security Cameras Female to Male Connector
BNC Coaxial Lightning Protection for HD Security Cameras Female to Male Connector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-BNC
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name: Coaxial Lightning Protection Test Standards: IEC 61643-21
Un: 5V Uc (DC): 6V
Uc (AC): 4V Material: Aluminium Alloy
IL: 0.5A Connection: BNC Socket
Application: AC/DC System Structure: Zinc Oxide Arrester

BNC Coaxial Lightning Protection for HD Security Cameras Female to Male Connector


BNC Coaxial Lightning Protection Application:

This surge protector prevents electrical surges from damaging your CCTV security camera or device.
It can be used for single BNC terminal, F terminal and N terminal lightning protection.
In addition to supporting Analog cameras, it also supports HD-TVI, AHD, and HDCVI HD surveillance cameras and devices.
It is produced according to the discharging, clamping, filtering principles, that realized high efficient discharging lightning currents and resistance of EMP shock which caused by lightning current.
In addition to being used for cameras, this surge protector may also be used for DVRs, multiplexers, and other video processing equipment.
Widely used in video line of monitoring system, BNC connector of monitoring system, CATV, CCTV, and lightning protection of other video line signal equipment.
Both NTSC and PAL video formats are supported, meaning this unit can be used anywhere in the world.


BNC Coaxial Lightning Protection Product Details:


 BR-BNC
Test standardsIEC 61643-21
Nominal voltage                                                                           Un5V
Max.continuous operating d.c.voltage                                          Uc6V
Max.continuous operating a.c.voltage                                          Uc4V
Nominal current IL                                                                         IL0.5A
C2 Nominal discharge current (8/20us)line-shield                         In5kA
C2 Nominal discharge current (8/20us)shield-PG                         In10kA
Voltage protection level [line-shield]                                            Up  ≤30V
Voltage protection level [shield-PG]                                             Up  ≤500V
Response time [line-shield]                                                           tA≤1ns
Response time [shield-PG]                                                           tA  ≤100ns
Operating temperature range                                                      Tu-40℃…+80℃
Connection input/outputBNC socket
Bandwidth10Mbps
Insertion loss≤0.3dB
Impedience50Ω
Enclosure material                aluminium alloy
Degree of protectionIP20
Order CodeD9020


Technology characteristic:

BNC Coaxial Lightning Protection for HD Security Cameras Female to Male Connector 0


BNC Coaxial Lightning Protection Product description:

The BR-BNC is a single channel coaxial video surge protector used in CCTV applications to protect surveillance DVRs, multiplexers, and any other type of video equipment from power surges.
BNC Surge Protective Device is designed according to the IEC standard and national standard.
The BR-BNC is designed for use with Analog, HD-TVI, HDCVI, and AHD security cameras and supports both NTSC and PAL video formats.
It has advantages of multi class’s protection, extremely low residual voltage, perfect transmission performance, quick respond, large discharging capacity, simple installation and connection, easy maintenance, etc.
Two of these surge protectors should be used per camera, one on the security camera end and one on the surveillance DVR end to fully protect your DVR and camera.
Low voltage protection.
This unit is not weatherproof and must be protected from direct weather elements.

BNC Coaxial Lightning Protection Features:

Coaxial Cable CCTV Video Protection
BNC Male to BNC Female
Protects equipment from High-Voltage surges caused by lightning
Supports Analog, HD-TVI, HDCVI, and AHD Security Cameras


Our Services:


• All products will be strictly Quality Checked in house before packing
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment


What is IEC 61643-21 standards?

IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected to telecommunications and signalling networks; Performance requirements and testing methods. The test categories for surge protective devices connected to telecommunications and signalling networks are defined in these standards.
