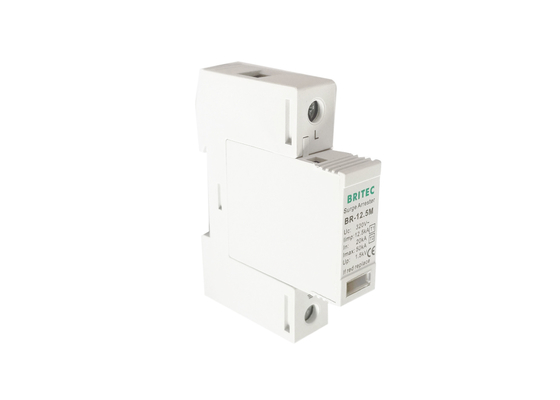

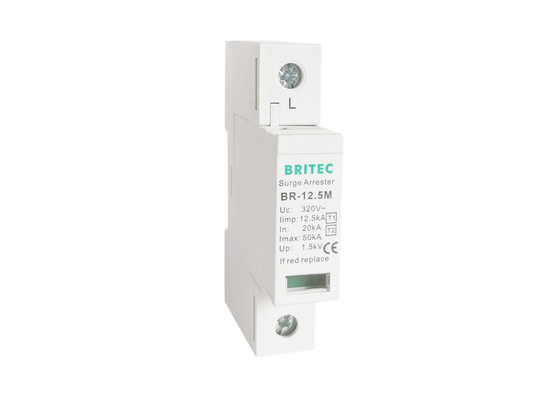

Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature

Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature

  • Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature
  • Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature
  • Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature
  • Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature
Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-12.5M 320 1P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protective Device Type: Ac Surge Protector
Material: Plastic Pole Number: 1P
Brand Name: Britec Protection: IP20
Certificate: TUV/CE/ROHS/ISO9001 Tu: -40℃-80℃
UC: 320V Limp: 12.5kA
Up: 1.5kV In: 20kA
High Light:

ac surge protection device

,

type 1 surge protector

320v 1 Phase Type 1 Surge Arrester TUV approved BR-12.5M 1P



Features:

  • Surge Protection Devices.
    Type 1+2 (Class I+II, T1+T2, B+C).
    Uc: 150v, 275v, 320v.
    Status indicator.
    Fault signal contact.
    DIN rail plug-in design.
    Based on high energy Metal Oxide Varistors.
    Versions with 1P, 1+NPE, 2P, 3P, 3+NPE and 4P.
    Exclusive devices for TN-S, TN-C and TT systems.
    Reversible chassis to allow cable entry from above or below.
    In accordance with EN61643-11 and IEC 61643-11.
    Discharges impulse currents with 10/350 μs waveform, Iimp: 12.5 kA.



Technology characteristic:



Specification BR-12.5M 1P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to EN61643-11 Class I
Max continuous 0perating a.c. voltage µc 320V
Lightning impulse current (10/350µs)                 limp 12.5kA
Norminal discharge current (8/20µs)                      In 20kA
Voltage protection level                                         Up 1.5kV
Follow current extinguishing capability a.c.            lifi 2.5kA rms
Response time                                                       tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
Certificate CB/CE/ROHS/ISO9001
Logo                   Customized logo available
Design ability We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)



Dimension:



Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature 0



Application:



Intended as a protection against indirect and low intensity direct hits of lightning strokes
Suitable for protection of electrical installations against transient overvoltage and indirect lightning strikes.
Suitable as the first step of protection in incoming power supply panels and areas with greater exposure
  to the atmosphere, where installations are usually provided with an external lightning protection system.

Advantage:

The modular design with plug in inserts allows simple and quick replacement of function modules in
  case of MOV is beyond if its lifespan due to high intensity or often occurrence of overvoltage peaks.



Our company:



We are the manufacturer of surge protection device, and our engineers have more than 17 years

experience in it. Our core competitve products are AC surge protector, PV surge protective device, data

line surge protection, and LED lightning protector etc.



Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature 1



Certification:



Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature 2



Production process:



Ac Type 1 Surge Protector One Phase Below Zero 40℃ To 80℃ Operating Temperature 3



FAQ:



Q1: What is your MOQ of this item?
  A: 100 pcs.



Q2: What is the lead time?
  A: 15-30 days after receiving your deposit.



Q3: Is it able to make customer's own brand name?
  A: We can be your OEM manufacture with your authorization of brand.



Q4: Where is your Loading Port?
  A: Usually Shanghai or Ningbo port.



Q5: What is your payment term?
  A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
