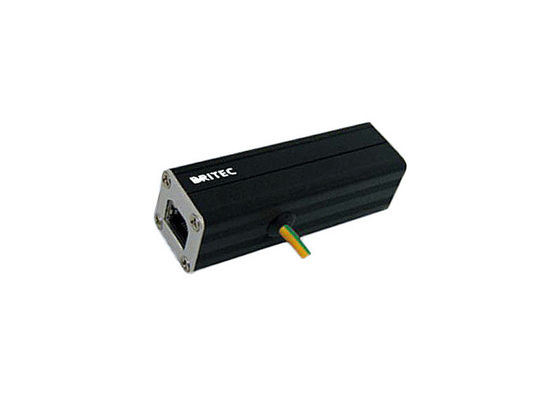

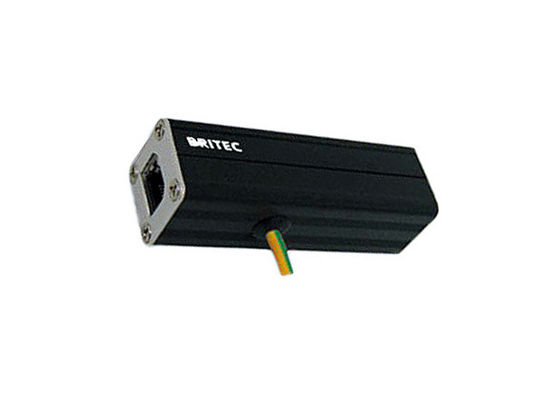

30Mbps RJ45 Gigabit Signal Ethernet Surge Protection Devices CAT5 CAT6

30Mbps RJ45 Gigabit Signal Ethernet Surge Protection Devices CAT5 CAT6

  • 30Mbps RJ45 Gigabit Signal Ethernet Surge Protection Devices CAT5 CAT6
  • 30Mbps RJ45 Gigabit Signal Ethernet Surge Protection Devices CAT5 CAT6
30Mbps RJ45 Gigabit Signal Ethernet Surge Protection Devices CAT5 CAT6
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRRJ45L-4L
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Type: Surge Protector Connection: RJ45
Outlets: 1 Port Condition: New
Un: 5V IL: 0.5A
In: 5kA Bandwidth: 30 Mbps
Insertion Loss: ≤0.3dB Tu: -40℃-80℃
High Light:

CAT6 signal surge protector

,

30Mbps Ethernet Surge Protection Devices

,

CAT6 Ethernet Surge Protection Devices

RJ45 Gigabit Signal Surge Protector Device CAT5/CAT6 LAN Lightning Arrestor Network Suppressor



About RJ45 Gigabit Signal Surge Protector Device:

Ethernet Surge Protector for Gigabit LAN Ethernet Network.
Ethernet Surge Protector - RJ-45 LAN Network Thunder Lightning Surge Suppressor/Arrester Protection Ethernet Network Card RJ45 Surge Protector Thunder Lightning Arrester Protection Device Protects your Ethernet device from the damage of lightning & surge.
Lightning Suppressor RJ45 Cable Protection CAT6/CAT5
Easy to install. Install between Ethernet and the protected device first, "IN" end is for input and "OUT" end is for output to the protected device, then set ground wire well and straight.
Aluminum Case, Line-Line Line-Ground Protection, 5KA 8/20μs
Connectors: RJ-45.
Thunder Arrestor Protects Computer Networking Equipment Devices like Router, Modem, Camera, Switch etc.
Material: shielded aluminum alloy.
Mounting Flanges provide option for screw mount to the Wall, Electric Panel or Network Rack Cabinet


RJ45 Gigabit Signal Surge Protector Device Product Details:



  BRRJ45L-4L
Test standards IEC61643-21
Nominal voltage                                                           Un 5V
Max.continuous operating d.c.voltage                         Uc 6V
Max.continuous operating a.c.voltage                         Uc 4V
Nominal current                                                             IL 0.5A
C2 Nominal discharge current (8/20us) per line            In 5kA
Voltage protection level [line-line]                                Up ≤30V
Voltage protection level [line-PG]                                 Up ≤500V
Response time [line-line]                                               tA ≤1ns
Response time [line-PG]                                               tA ≤100ns
Operating temperature range                                       Tu -40℃…+80℃
Connection (input/output) RJ45 socket
Bandwidth             30 Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20



Dimension:



30Mbps RJ45 Gigabit Signal Ethernet Surge Protection Devices CAT5 CAT6 0



RJ45 Gigabit Signal Surge Protector Device Product description:

Ethernet Surge Protector is a surge protection device (SPD) that is inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage of electronic networking equipment.
Dimensions: 84mm x 25mm x 25mm.
Powerful surges that the device protects against include direct lightning strikes, voltage spikes, or PoE overvoltages.
Supports Ethernet card, Repeater, HUB, Switchboard, Router or other Ethernet devices.
It ensures the safety of a wide array of valuable components such as switch, router, modem, bridge, repeater, or any part of internet service network.
Please install surge protector within 1 meter from device protected.
Mounting flange on the both sides of lightning suppressor allows easy mounting to a wall, network panel, cabinet, or rack attaching by screws (not included).

RJ45 Gigabit Signal Surge Protector Device Installation:

The Ethernet lightning arrestor must be properly grounded to work.
The ethernet ground wire (11 Inch - 12 AWG) on the surge protector needs to be connected to ground through the shortest path. Excess electricity will follow the path of least resistance.
In most cases, a ground busbar on an electrical panel or network rack cabinet is already grounded and is typically the easiest way to ground the wire.
Other options to ground RJ45 surge protector are grounding block on the breaker panel, grounding rod or terminal of the closest outlet by connecting the ground wire to circular grounding hole on the grounded outlet center screw.
The lightning arrestor can be used with unshielded twisted pair (UTP) or shielded (STP) cables. The arrester is housed in a cast aluminum enclosure. The metal housing allows shielded current to be passed through the metal case of the network surge protector.
