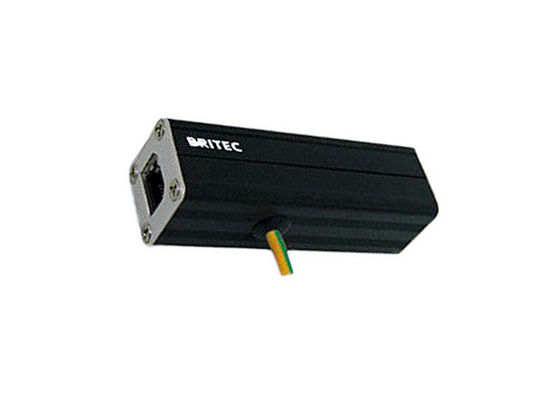

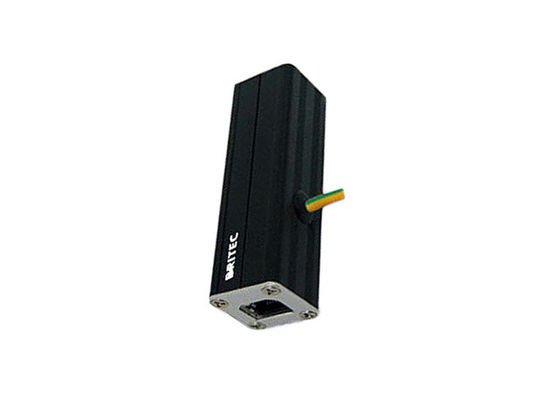

30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks

30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks
30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks 30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks

Large Image :  30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRRJ45L-4L
Document: BR-RJ45 RJ11.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces per Month
Contact Now

30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks

Description
Rated Voltage: 5V Rated Loading Current: 0.5A
Insertion Loss: ≤0.3dB Product Name: Surge Protective Device
Type: Singal Protection Material: Aluminium Alloy
Protection Level: IP20 Function: Signal Line Lighting Protection
Connector Type: RJ45 Outlets: 1 Port
Highlight:

RJ45 Thunder Arrestor

,

30Mbps Thunder Arrestor

,

LAN Lightning Thunder Arrester

30Mbps LAN Lightning RJ45 Thunder Arrestor Adapter Device Ethernet Network Surge Protector Cable
Product Overview
This high-quality RJ45 Thunder Arrester Device provides robust protection for your Ethernet network equipment against lightning strikes and power surges.
Key Features
  • 100% brand new and high quality construction
  • Protects Ethernet devices from lightning and surge damage
  • Standard shielded RJ45 interface for over-voltage protection
  • Supports 10BaseT & 100BaseTX networks
  • 30 Mbps bandwidth with minimal insertion loss
Technical Specifications
ParameterValue
Test StandardsIEC61643-21
Nominal Voltage (Un)5V
Max Continuous Operating DC Voltage (Uc)6V
Max Continuous Operating AC Voltage (Uc)4V
Nominal Current (IL)0.5A
Lightning Impulse Current (10/350μs)0.5kA
Nominal Discharge Current (8/20μs)1.5kA
Voltage Protection Level [line-line] @200A≤30V
Voltage Protection Level [line-PG] @1.5kA≤500V
Response Time [line-line]≤1ns
Response Time [line-PG]≤100ns
Operating Temperature Range-40℃ to +80℃
ConnectionRJ45 socket
Bandwidth30 Mbps
Insertion Loss≤0.3dB
Enclosure MaterialAluminium alloy
Degree of ProtectionIP20
Product Dimensions
30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks 0
Advanced Protection Features
  • Multi-functional overvoltage protection against lightning and power surges
  • Easy installation suitable for both professionals and beginners
  • Strictly screened core components for stable performance and reliable operation
Working Principle
During normal operation, the lightning arrester remains inactive, serving as a ground circuit. When abnormal voltage occurs that threatens the protected equipment's insulation, the arrester immediately activates, directing high-voltage current to the ground. This limits voltage amplitude and protects electrical equipment insulation. Once the overvoltage subsides, the arrester quickly returns to its original state, allowing normal system operation to resume.
Manufacturer Information
Wenzhou Britec Electric Co., Ltd. is a specialized manufacturer and exporter of Surge Protection Devices (SPDs), including AC surge protectors, DC surge protection, LED lighting surge arresters, and data surge protective devices. Located in Yueqing, Zhejiang, China, the company is known for excellent quality, competitive prices, and reliable service. Company culture emphasizes sincerity, trustworthiness, punctuality, and high-quality standards.
30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks 1
Certifications
30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks 2
Payment & Shipping Information
30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks 3 30Mbps RJ45 Surge Protector with Aluminium Alloy Housing for Lightning Protection in Ethernet Networks 4
Frequently Asked Questions
Who are we?
We are based in Zhejiang, China, and have been operating since 2003.
What is your delivery date?
Sample Order: 15 days after full payment; Mass Order: 30 days after full payment; OEM Order: 30 days after deposit.
How can we guarantee quality?
Pre-production samples before mass production; Final inspection before shipment.
Can you send samples?
Yes, samples are available upon request. Please contact us directly.
