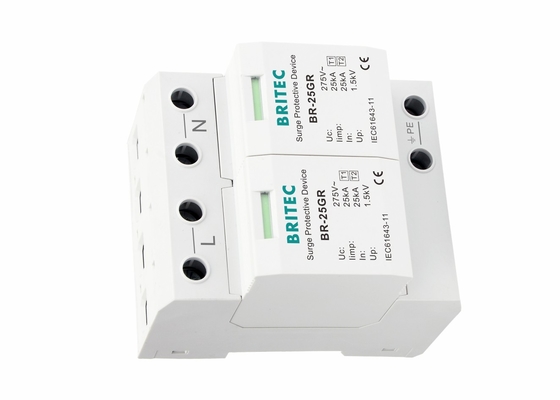

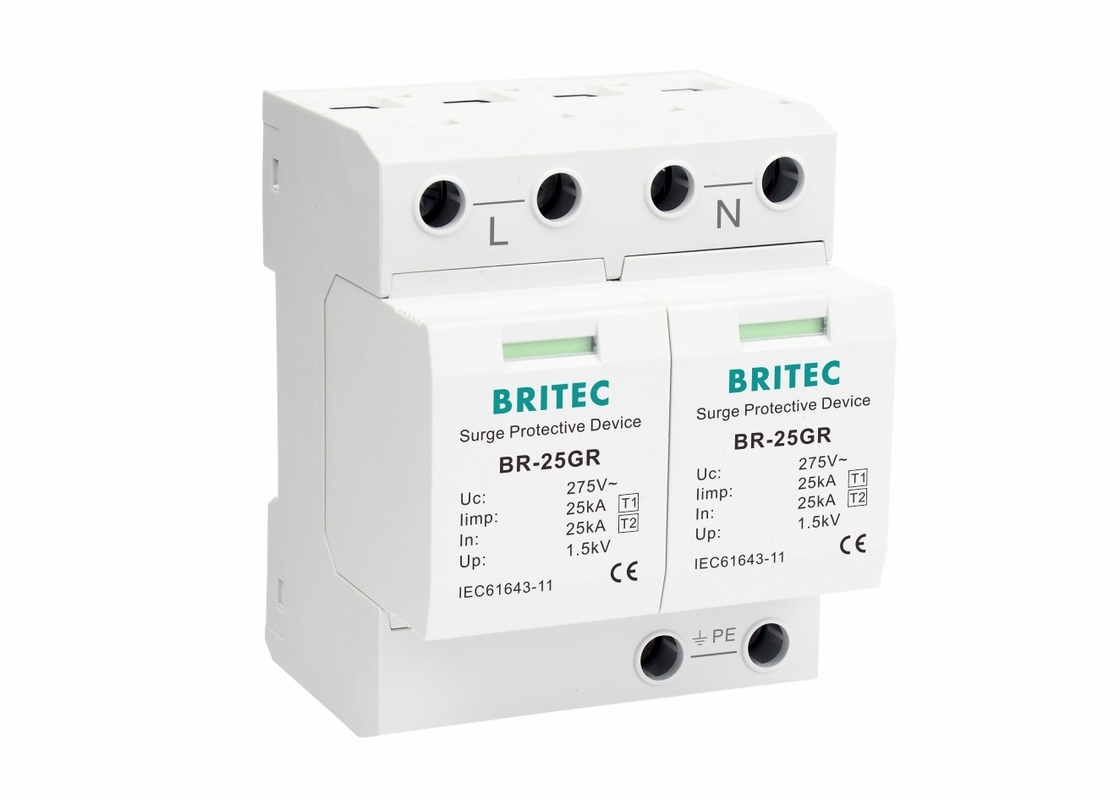

25kA 1 Phase IP20 380V Type 1 Surge Protection Device

25kA 1 Phase IP20 380V Type 1 Surge Protection Device

  • 25kA 1 Phase  IP20 380V Type 1 Surge Protection Device
  • 25kA 1 Phase  IP20 380V Type 1 Surge Protection Device
25kA 1 Phase  IP20 380V Type 1 Surge Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-25GR 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Arrester Type: Ac Surge Protector
Material: Plastic Dimension: 2P
UC: 385V Iimp: 25kA
Imax: 100kA Up: 2.0kV
Certificate: TUV/CE/ROHS/ISO9001 Tu: -40℃-80℃
High Light:

25kA Type 1 Surge Protection Device


IP20 Type 1 Surge Protection Device


25kA Ac Surge Protector

10/350 25kA SPD 1 Phase Power Lightning Protector IP20 B 380V Electric Protection

10/350 25kA SPD 1 Phase Power Lightning Protector Introduction:
Britec BR-25GR Voltage Switching Type high energy modular SPD is designed according to IEC standard.
With indication window
The dash current of each signal module can be up to 25kA (10/350μS).
Unique designing, patent technology
The core parts are multilayer spark gap with high discharge capacity
It could be installed in 380V AC power system.


10/350 25kA SPD 1 Phase Power Lightning Protector Technology characteristic:

SpecificationBR-25GR 2P
Item nameSurge Arrester
SPD dassification according to EN61643-11Type 1 + Type 2
SPD dassification according to EN61643-11Class I + Class II
Max continuous 0perating a.c. voltage       Uc385V
Lightning impulse current (10/350µs)       limp25kA
Norminal discharge current (8/20µs)            In25kA
Maximum discharge current (8/20µs)      Imax100kA
Voltage protection level                               Up≤2.0kV
Follow current extinguishing capability a.c. lifi5kA rms
Max. backup fuse315A gG
Response time                                             tA≤100ns
For mounting on35mm Din rail
Degree of protectionIP20
Payment term30% deposit in advance,70% before shipment,100% T/T in advance
LogoCustomized logo available
Design abilityWe can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

25kA 1 Phase  IP20 380V Type 1 Surge Protection Device 0

10/350 25kA SPD 1 Phase Power Lightning Protector Characteristic:
- Class I / B, Type 1 surge arresters.
- This model designed in modular with excellent airtight property.
- 2P, 1 phases
- It is with 35mm electrical lead rail, which make it easy for installation.
- Iimp 25kA.
- It also has the advantage of low residual voltage, quick response, high discharge capability, long life, completed variety, easy maintenance and so on.
- Low residual voltage and quick response.
- Reliable control thanks to Thermo Dynamic Control disconnector.
- Fault indication via red mark in the inspection window.
10/350 25kA SPD 1 Phase Power Lightning Protector Application:
AC surge protector for low-voltage power system.
BR-25GR series surge protective devices are usually installed in low voltage main distribution box connected to the incoming end of the buildings.
Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
This product is especially suitable for application in the A grade Lightning Protection in high risk area of lightning strike.
SPDs type 1:
The Type 1 SPD is recommended in the specific case of service-sector and industrial buildings, protected by a lightning protection system or a meshed cage. It protects electrical installations against direct lightning strokes. It can discharge the back-current from lightning spreading from the earth conductor to the network conductors. Type 1 SPD is characterized by a 10/350 µs current wave.
Our Services:
• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
• Type 1 or Type 1+2 SPD (Iimp ≥ 12.5 kA) compulsory at the installation source (main distribution board in secondary buildings).
• Installations more than 10 m high (apartment buildings, office buildings, hotels, etc): type 2 SPD recommended for protecting private areas and floor distributors (communal areas) in addition to a type 1 or type 1+2 SPDs.
• Installations with numerous private areas (apartment buildings, office buildings, etc): type 2 SPD where In ≥ 5 kA compulsory at the source of each private area if the type 1 or type 1+2 SPDs cannot be installed at the installation source.

Company Information:
Britec Electric Wenzhou Co., Ltd. is located in Yueqing city, which on the coast of the East China Sea. It is a professional manufacturer engaged in the development, production, sales and service of low-voltage surge protection device products. Equipped with domestic advanced production lines and sophisticated testing equipment. The company's leading products include AC surge protectors, DC surge protectors for low-voltage power distribution systems, data lightning protection devices, LED surge protectors etc.
25kA 1 Phase  IP20 380V Type 1 Surge Protection Device 1
25kA 1 Phase  IP20 380V Type 1 Surge Protection Device 2
25kA 1 Phase  IP20 380V Type 1 Surge Protection Device 3
25kA 1 Phase  IP20 380V Type 1 Surge Protection Device 4
Q: Are you manufacturer or trading company?
A: Both. We have been in this field for more than 17 years. With superior quality products and competitive price, we sincerely hope to develop mutual-beneficial business with our customers all over the world.
Q: Could you offer samples for testing market firstly?
A: Yes, samples order is welcome.
Q: What kinds of payment do you accept?
A: Currently we accpet TT, Paypal, L/C.
Q: How to order?
A: 1. Please send enquiry and advise your requirement; 2. We will make offer to you with your requirement, Invoice will be sent if the price and other details confirmed; 3. Make down payment(or full payment), then we will arrange the production; 4. We will help to keep track of the shipping until they reach you safely.
Q: Tell more about your company?
A: We are focus on 4S company, Superior Quality, Suitable Price, Speedy Time and Sincere Service. We will give our professional on your order, include price, delivery, quality inspection and after sales.
