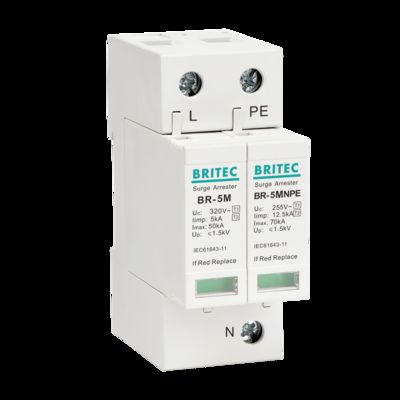

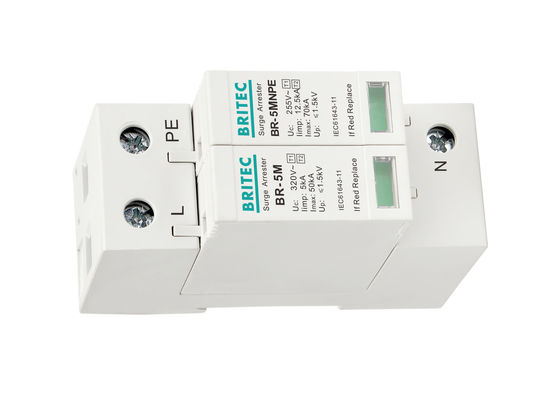

1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home

1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home
1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home 1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home

Large Image :  1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-5M-320 1+NPE
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces Month
Contact Now

1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home

Description
Type: T1 + T2 Iimp: 5kA
In/Imax:: 20kA/50kA Conform To: IEC/EN 61643-11,GB/T 18802.11
Material: Thermoplastic UL94-V0 Item Name: Surge Protector
Class: Class I + Class II Pole Number: 1P+NPE
Tu: -40℃-80℃ Uc: 320V AC
Highlight:

SPD lightning surge arrester

,

5kA lightning surge arrester

Power Lightning Arrester Surge Arrester Class I + II AC SPD Feature:


• Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.
• SPD is suitable for AC 50/60HZ, TT power supply systems.
• Signs partner agreement with EPCOS for surge protector's MOV development.
• Designed according to IEC61643-1 and GB18802.1 standards.
• Use thermoplastic materials and conform to UL94-V0.

Power Lightning Arrester Surge Arrester Class I + II AC SPD Product Details:

  BR-5M-320 1+1
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                     Uc 320V
Lightning impluse current (10/350us)                      Iimp 5kA
Nominal discharge current (8/20us)       (L-N / N-PE) In 20kA / 40kA
Max. discharge current (8/20us)        (L-N / N-PE) Imax 50kA / 70kA
Voltage protection level                         (L-N / N-PE) Up ≤1.3kV / ≤1.5kV
Voltage protection level 5kA                  (L-N / N-PE) Up ≤1.0kV / ≤1.5kV
Response time                                       (L-N / N-PE) tA ≤25ns / ≤100ns
Operating temperature range                                     Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material                    Thermoplastic UL94-V0


Dimension:


1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home 0

Why need SPD?

When the power system suffered thunder of other reasons, it produces high frequency pulse voltage. The electrical equipment will be damaged. Especially with the large use of computer and microelectronic facilities, people have concerned the over protective device of low voltage power
system.

Our company:

Wenzhou Britec Electric Co., Ltd. locates in Yueqing City, Zhejiang Province, China, it was founded in 2003, its main products include: AC surge arrester, DC surge protector, data surge protection, LED lightning arrester and other products.

1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home 1

Certificates:

1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home 2

Our factory:

1P + NPE Ac 320v Power Lightning Arrester Surge Arrester Class I + II AC SPD Surge Protector For Home 3

FAQ:


1. How can I get some samples?
A: We are pleased to offer you samples, but you need to bear sample cost and oversea freight.



2. Are you a factory?
A: Yes. We have specialized in this field about 21 Years.



3. Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing, Zhejiang, China. All our clients, are warmly welcome to visit us.



4. What is the delivery time?
A: 30 days normally, detail delivery date should be decided according to production season and order quantity.



5. What is your MOQ?
A: The MOQ is based on your different order and packaging choose. Please contact us for more details.
