1 Phase Class I T1 50kA Lightning Proof Surge Suppressor Surge Protective Device

1 Phase Class I T1 50kA Lightning Proof Surge Suppressor Surge Protective Device

  • 1 Phase Class I  T1 50kA Lightning Proof  Surge Suppressor Surge Protective Device
  • 1 Phase Class I  T1 50kA Lightning Proof  Surge Suppressor Surge Protective Device
1 Phase Class I  T1 50kA Lightning Proof  Surge Suppressor Surge Protective Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-50GR 1P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Product Name: Surge Protective Device Type: Ac Surge Protector
Standard: IEC / EN 61643-11 Material: Plastic
Pole Number: 1P Protection: IP20
Iimp: 50kA In: 50kA
Uc: 385V Warranty: 2 Years
High Light:

50kA lightning surge suppressor

,

T1 lightning proof surge protector

,

T1 lightning strike surge protector

Class B T1 50kA Lightning Suppressor AC SPD 1 Phase Class I Surge Protection Device



Class B T1 50kA Lightning Suppressor AC SPD Features:

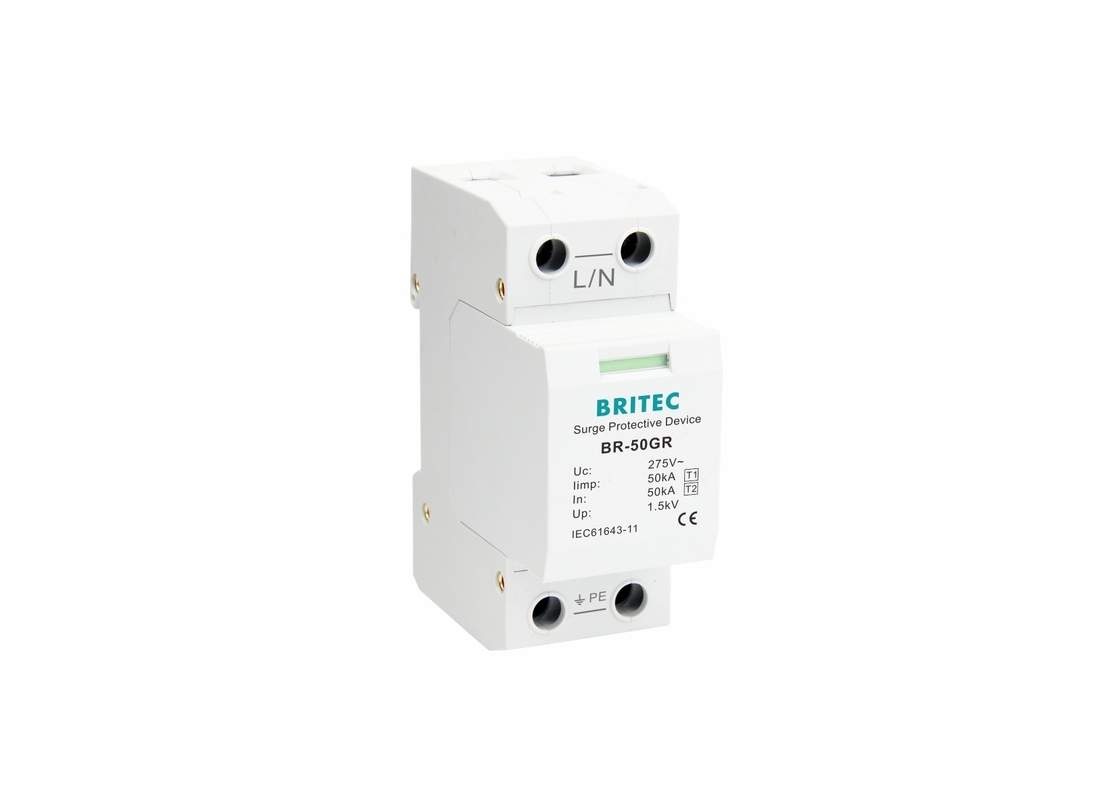

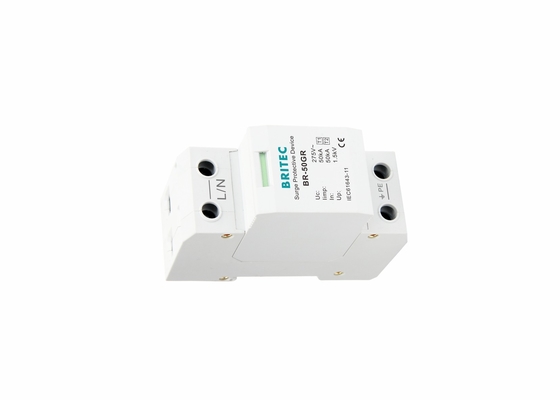

The AC Surge Protection Device T1 50kA BR-50GR line is a group of Class I Surge Protective Devices.
Type 1 unipolar surge protector
They are intended as protection against direct hit of lightning strokes of high intensities or in installation with frequent occurrence of lightning strokes.
50 kA on 10/350µs impulse
The design of AC Surge Protection Device T1 50kA BR-50GR is fully based on the Spark Gap solution.


Class B T1 50kA Lightning Suppressor AC SPD Technology characteristic:



Specification BR-50GR 1P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage                    Uc 385V
Lightning impulse current (10/350µs)                    limp 50kA
Norminal discharge current (8/20µs)                         In 50kA
Max discharge current (8/20µs)                           Imax 160kA
Voltage protection level                                           Up ≤2.5kV
Follow current extinguishing capability a.c.              lifi 3kA rms
Max. backup fuse 500A gG
Response time                                                          tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                   Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermal plastic UL94-V0



Dimension:



1 Phase Class I  T1 50kA Lightning Proof  Surge Suppressor Surge Protective Device 0



Class B T1 50kA Lightning Suppressor AC SPD Application:



The BR-50GR is a Type 1 AC surge protector device designed to protect at the entrance of the electrical installation.
It protects the sensitive lines from the damage caused by lightning induction voltage, power interference, and electrostatic discharge and so on.
This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods).

Class B T1 50kA Lightning Suppressor AC SPD Working principle of product:

Under normal working condition, the lightning protection module is in a high resistance state. When the power supply line has lightning invasion or operation transient overvoltage, the lightning protection module will immediately pass through the response speed of nanosecond level, and limit the lightning overvoltage or transient overvoltage to the voltage range allowed by the electrical equipment, thus protecting the normal operation of the electronic equipment. After that, the lightning protection module quickly returns to the high impedance state without affecting the normal power supply of the grid.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.

Installation and note:

• Usually installed in the low-voltage main distribution cabinet of the building incoming line.
• In the normal use of this surge protector, especially during the thunderstorm season, the grounding system of the surge protector should be checked in time to keep it in good grounding condition, otherwise the protection effect of the surge protector will be affected to varying degrees.

Certificate:

1 Phase Class I  T1 50kA Lightning Proof  Surge Suppressor Surge Protective Device 1

About us:


Wenzhou Britec Electric Co.,LTD. A professional global SPD supplier. Company main production a series of low voltage surge protection device.

We design and produce our own products. Our intention is to provide solutions of surge protection for our clients. We are keeping dedicated to improving the management of production and developing new products, which makes it possible to help our clients to grow their business, as well as ours.


1 Phase Class I  T1 50kA Lightning Proof  Surge Suppressor Surge Protective Device 2

Production process:

1 Phase Class I  T1 50kA Lightning Proof  Surge Suppressor Surge Protective Device 3

FAQ:


1. About samples?
A: Yes, samples are viable.



2. Are you factory ? Can you export the goods directly ?
A: Yes. We are trading and manufacturing company, we can export the goods by ourselves.

3. How to control the quality?
A: Full inspect by professional machine. Finished product and packaging inspection.



4. What is the trade terms and payment terms?
A: Trade terms: EXW, FOB, CIF. Payment term : T/T, 30% as deposit, 70% before shipping.



5. How about the time of delivery ?
A: Honestly, it depends on the order quantity and the season you place the order. Normally, the delivery will be around 15-25 days.



6. About the ability of develop new product?
A: We have a development team with excellent designers who will design new products according to client demand.
